Lubricants

Manufacturers produce Corrosion Prevention Compounds (CPC) in 3 types of categories.

These can be classified by thin, medium and thick film types. Each category has features and benefits with the film thickness of each particular category: thin, medium and thick.


Thin Film

- CarWell CP90 - A unique blend of rust inhibitors that guard against rust and corrosion on all      metals. It eliminates moisture containing salt, dirt and other pollutants from the metal providing long lasting protection.

- CarWell Rust Cop - Aerosol version of CarWell CP90.

- Cortec® Ecoline® 3220 - Exciting addition to our biodegradable line of products made with renewable resources-99% bio-based ready-to use temporary coating.


Medium Film

- Bullfrog 93692 - Consumer Version of VpCI®-369.

- Cortec® VpCI-369 - Best Inhibitor for use as an Oil additive and/or Temporary Coating.


Thick Film

- Cortec® VpCI-368 Aero -  Extreme Outdoor Corrosion Inhibitor is a dry, hard, waxy film aerosol size of VpCI-368.


 Contact us for industrial sales and other inquires.


Products - Thin Film

CarWell CP90

Product Description

CarWell’s Rust Inhibitor CP90 is a unique blend of rust inhibitors to control corrosion on all metals. It eliminates moisture containing salt, dirt and air pollutants from the surface of metal to give long lasting protection. It also lubricates moving parts and is an excellent penetrant even through existing rust.


Advantages

•No hazardous Materials •No Silicones •No CFC’s •Eliminates moisture containing salt, dirt and air pollutants from metal surface •Lubricates moving parts •Excellent penetrant even through existing rust * As defined by OSHA Regulation 29 CFR 1910.1200.


Applications

• Seams, welds, folds and crevices• Riveted pieces, chains• Door & lock mechanisms• Gas tanks & straps• Brake cables• Wheel hub nuts• Oil pan, transmission nuts & bolts• Mirror mounts

• Headlight Adjusters• Trucks, cars, vans, motorcycles, ATV, PWC’s, buses, trailers, tractors, boats • Salt spreaders, seeders, fertilizer spreaders• Lawn mowers, Landscape Equipment, Golf Course Equipment• Tools, shovels, rakes, metal boxes• Garage doors, locks, hinges, louvers• Roof top mechanical components• Seized parts, nuts and bolts• Rollers, castors, hinges, brackets, release cables• Window regulators & wiper mechanism• Coil & leaf springs, U bolts• Electrical wiring, lights, electrical connectors• Battery posts & cables• Any area where dissimilar metals are fastened• Radiator brackets, shrouds & casing• Particularly prior to or during periods of storage or as part of regular maintenance.


How to Use

Apply liberally to areas prone to corrosion, rusty areas or seized parts. Allow time to penetrate on seized parts. Reapply as needed to maintain the level of protection and lubrication desired. The product will not harm rubber, painted surfaces, plastics or glass. Do not allow product to puddle or buildup on weather stripping, rubber gaskets or liners. Protect with silicone spray.


Do not apply to recently painted area for at least 48 hours after paint has properly dried and cured. Do not apply to parts that are glued together like side moldings as the product may break down the glue.


Packaging: CP90 (16oz) Bottles, CP90 Gallon Jugs, 5 Gallon Pails, 55 Gallon Drums


Buy Now for CarWell CP90 retail locations.


Contact us for industrial sales and other inquires.


CarWell Rust Cop

Product Description
CarWell’s RUST COP Aerosol (12oz) Part number 00321 is a unique blend of rust inhibitors to control corrosion on all metals. It eliminates moisture containing salt, dirt and air pollutants from the surface of metal to give long lasting protection. It also lubricates moving parts and is an excellent penetrant even through existing rust.

Advantages

• No hazardous Materials* • No Silicones • No CFC’s • Eliminates moisture containing salt, dirt and air pollutants from metal surface • Lubricates moving parts • Excellent penetrant even through existing rust  * As defined by OSHA Regulation 29 CFR 1910.1200.

Applications
• Seams, welds, folds and crevices• Riveted pieces, chains• Door & lock mechanisms• Gas tanks & straps• Brake cables• Wheel hub nuts• Oil pan, transmission nuts & bolts• Mirror mounts
• Headlight Adjusters• Trucks, cars, vans, motorcycles, ATV, PWC’s, buses, trailers, tractors, boats • Salt spreaders, seeders, fertilizer spreaders• Lawn mowers, Landscape Equipment, Golf Course Equipment• Tools, shovels, rakes, metal boxes• Garage doors, locks, hinges, louvers• Roof top mechanical components• Seized parts, nuts and bolts• Rollers, castors, hinges, brackets, release cables• Window regulators & wiper mechanism• Coil & leaf springs, U bolts• Electrical wiring, lights, electrical connectors• Battery posts & cables• Any area where dissimilar metals are fastened• Radiator brackets, shrouds & casing• Particularly prior to or during periods of storage or as part of regular maintenance.

How to Use

Apply liberally to areas prone to corrosion, rusty areas or seized parts. Allow time to penetrate on seized parts. Reapply as needed to maintain the level of protection and lubrication desired. The product will not harm rubber, painted surfaces, plastics or glass.Do not allow product to puddle or buildup on weather stripping, rubber gaskets or liners. Protect with silicone spray. Do not apply to recently painted area for at least 48 hours after paint has properly dried and cured. Do not apply to parts that are glued together like side moldings as the product may break down the glue.


 Buy Now for CarWell Rust Cop retail locations.


 Contact us for industrial sales and other inquires.


Cortec EcoLine® 3220

Product description

EcoLine® 3220 is a 99% biobased ready-to use temporary coating. This canola oil-based product offers a tenacious film that clings to metal surfaces providing excellent contact corrosion protection in storage and shipment. In addition, EcoLine® 3220 provides long lasting vapor corrosion inhibition. Made from renewable materials and containing canola oil as a carrier, this product is environmentally safe, has excellent thermostability, and has no effect on rubber, plastics, or paints.


EcoLine® 3220 falls within the USDA BioPreferred Corrosion Preventative Catagory and is identified for Federal Agency Preferred Purchasing (www.biopreferred.gov). In addition EcoLine® 3220 provides multimetal protection and lubricity in a variety of applications.


Advantages

• Complete multimetal protection • Environmentally friendly and biodegradable • Biobased • Safe for users • VOC-free • Provides universal corrosion protection • Combines film-forming additives with (VpCIs) • Provides excellent anti-corrosion protection in high humidity atmospheres and chloride-containing environments • Lubricates parts • Good replacement for mineral oil and flammable solvents • Low pour point (-18°C)


Metal Protected

• Carbon steel • Aluminum and alloys • Copper and alloys • Cast iron • Galvanized steel • Stainless steel


Applications

• Machines and equipment • Maintenance •Temporary coating for storage and shipment • Wire  • Sheet metals • Pipe • Flanges • Gears • Fabricated or machined parts • Ballast tank preservation


Packaging:  5 gallon (19 liter) pails, 55 gallon (208 liter) drums, liquid totes, and bulk.


Contact us for industrial sales and other inquires.


Medium Film

Rust Blocker (93692)

Product Description

Bullfrog Lubricant with Rust Blocker (93692). Industrial Version VpCI®-369.


Works Better Than…”You Know Who”!

Bull Frog Lubricant & Rust Blocker not only stops metal parts from sticking and squeaking,


it eliminates the problem from happening in the first place by actually preventing rust and corrosion. It uses Vapor phase Corrosion Inhibitor (VpCI) technology to form an invisible electrochemical barrier around the metal therefore protecting it against corrosion causing air and moisture.


The non-conductive protective film offer long-lasting protection for up to a full year. Lubricate and protect tools, machinery, bearings, chains, fittings, hinges, rusted bolts, and more.


Advantages

• Non-conductive, no CFC's or III trichlors, non sticky, fast drying • Works even under extreme conditions • Protects and enhances performance up to one year


Applications

• Tools, bearings, chains, fittings, hinges, rusted bolts • Marine Equipment • Machinery & Equipment • Hand & Power Tools • Trucks, Cars, Bikes • Any moving part


How to Use

To use—Simply spray area that is stuck, squeaky or needs lubrication.



Buy Now for Bullfrog Lubricant retail locations.


Contact us for industrial sales and other inquires

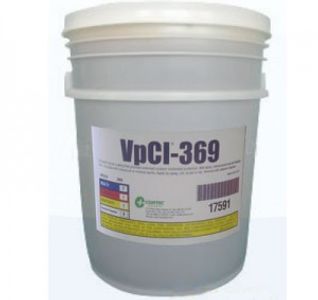

Cortec® VpCI-369

Product description

VpCI®-369 is our best inhibitor for use as an oil additive and/or temporary coating. The protective film is self-healing and moisture-displacing, providing superior protection against aggressive environments. VpCI®-369 is also excellent when used as an oil additive for mothballing, shipping, or storage of parts and equipment. In small percentages, VpCI®-369 has a minimal effect on viscosities.


Cortec® VpCI®-369 is available prediluted with mineral spirits at the ratio 1:1 as VpCI®-369 H, which is recommended for spray can applications. VpCI®-369 also comes with an UV tracer, as VpCI®-369 UV. VpCI®-369 UV shows as a bright blue under black UV light, making quality assurance on coverage of the rust preventative particularly convenient when it is used as temporary coating.


Advantages

• Self-healing • Excellent lubricity • Extends tool life for metalworking operations • Excellent outdoor protection • Excellent oil additive • Dilutable with oil


Metals Protected

• Silver • Cast Iron • Stainless Steel • Copper • Magnesium • Aluminum • Carbon Steel


Applications

• Wire rope • Electrical connections/wiring • Sheltered coating • Gear protectant/lubricant • Long-term (5+ years) equipment lay-up • Stamping oil additive • Drawing oil additive • Cylinders • Working/moving parts


Package: 5 gallon (19 liter) plastic pails, 55 gallon (208 liter) metal drums and 11 oz. (312 g) aerosol cans.


Contact us for industrial sales and other inquires


Thick Film

Cortec® VpCI-368 Aero - Extreme Outdoor Corrosion Inhibitor is a dry, hard, waxy film aerosol size of VpCI-368.

Product description

VpCI®-368 is a time-proven coating that provides excellent protection to metal substrates exposed to harsh outdoor conditions. VpCI®-368 leaves a firm, wax-like film that can be removed by mineral spirits or alkaline cleaners such as Cortec® VpCI®-414.


Advantages

• Flexible • Excellent salt spray protection • Excellent outdoor protection • Multimetal protection

• Excellent UV resistance • Moisture displacing • Cured film is heat stable up to 392°F (200°C)

• Commercial equivalent to MIL-PRF-16173E (Grades 1 and 2)


Metals Protected

• Carbon Steel • Stainless Steel • Copper • Aluminum • Cast Iron


Applications • Pipe coating • Parts storage • Underbody coating • Wire rope • Steel plate • Machined parts


Packaging : 5 gallon (19 liter) steel pails, 55 gallon (208 liter) metal drums, totes, and bulk.

Available as CorShield® VpCI®-368 in 11 oz. (312 g) aerosol cans


Contact us for industrial sales and other inquires
